Following on from the previous page. The quick release handle is oriented this way, going off the drawings of these LQ Dawns in the brochures:

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

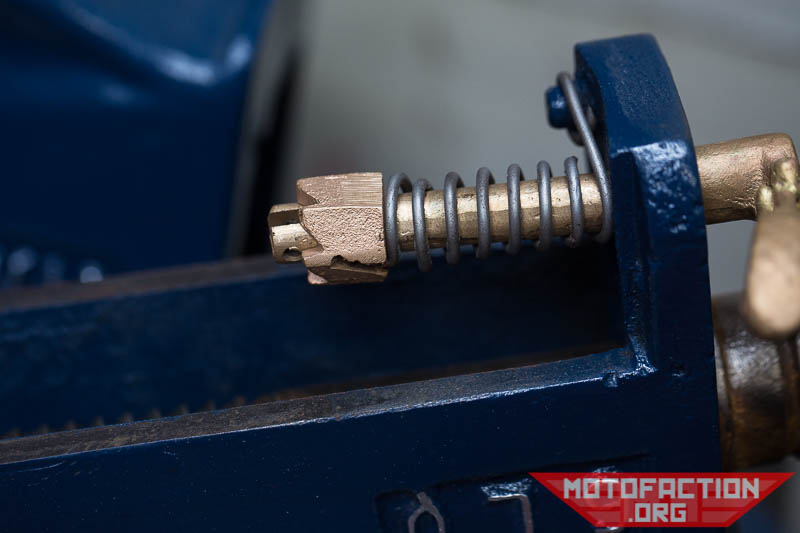

Spring installed:

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

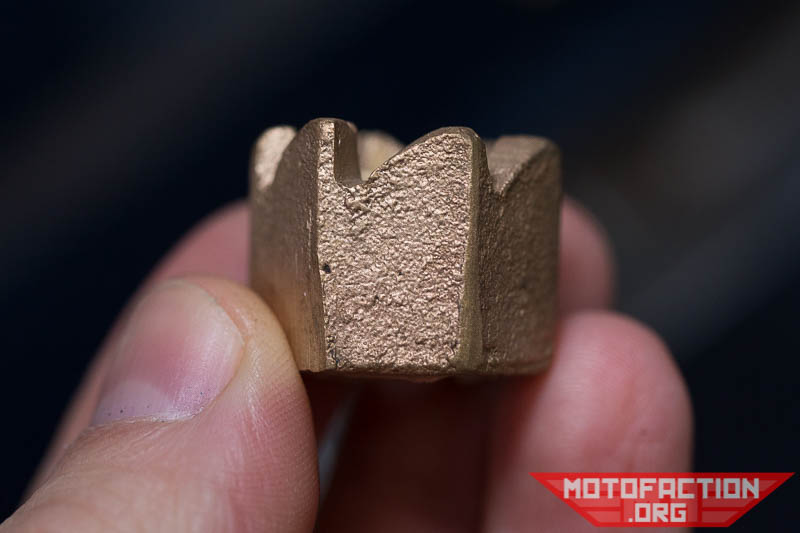

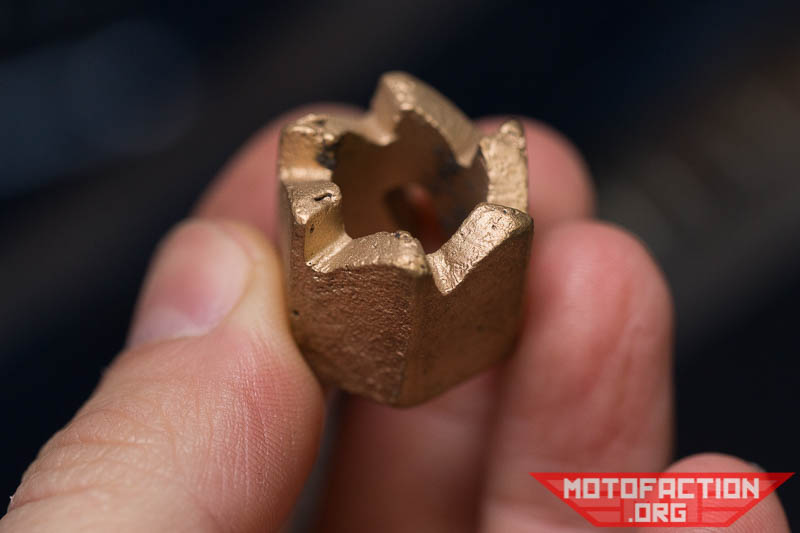

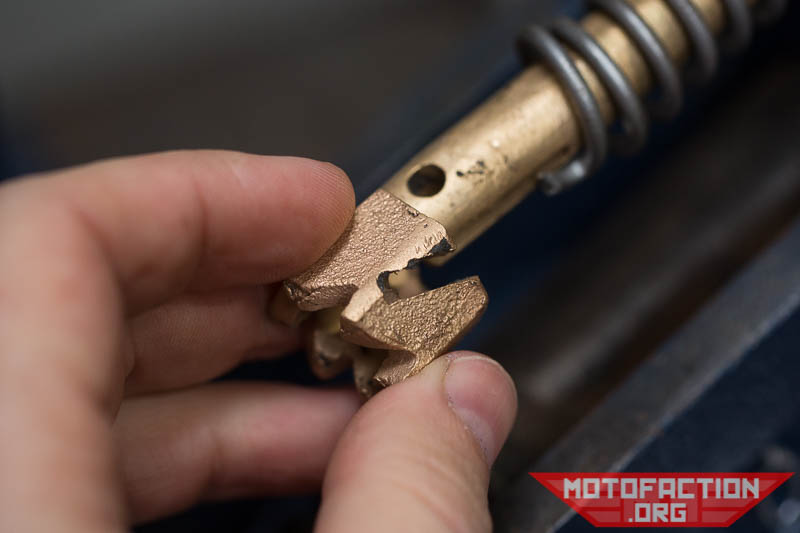

The nut, cleaned up:

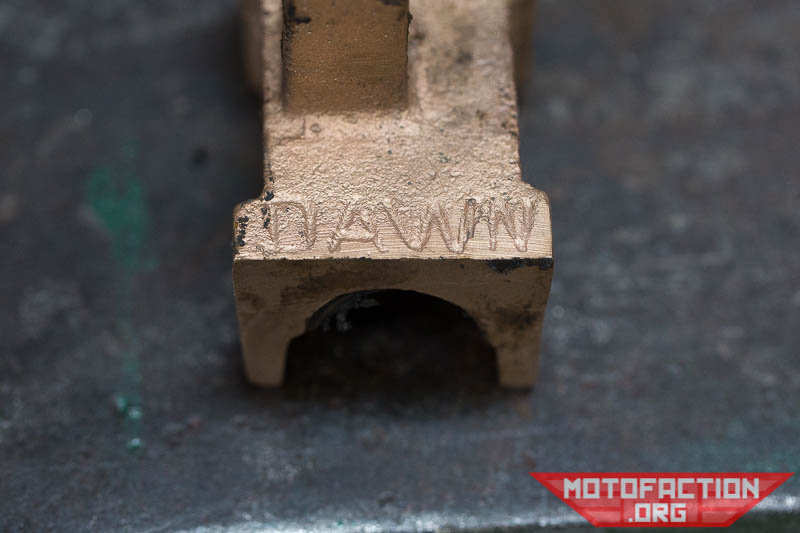

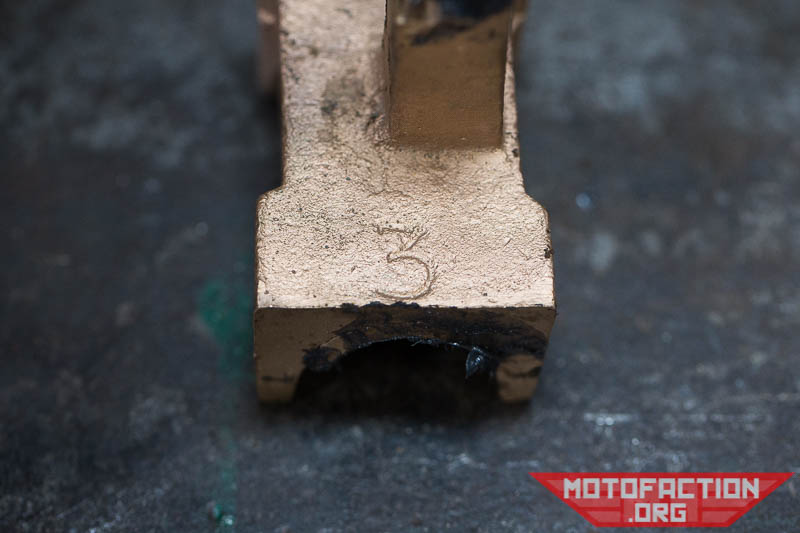

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

It goes in this way:

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

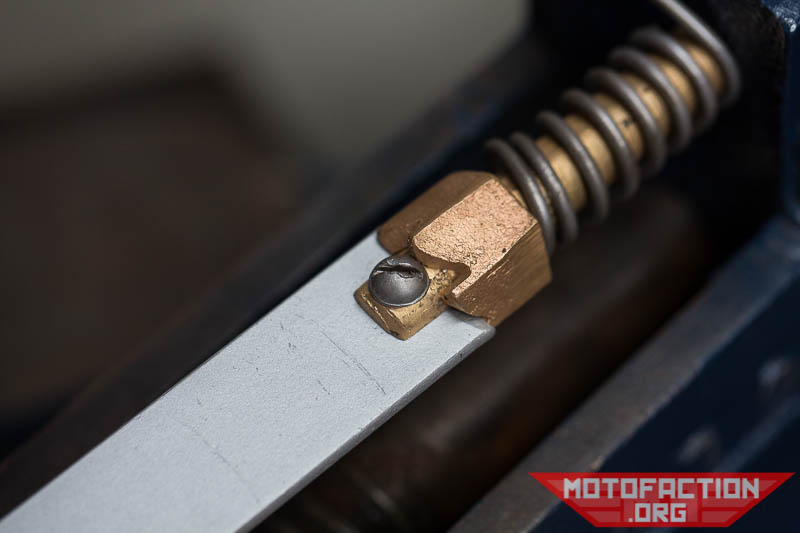

The flat bar piece goes in next. It measures 12" long, 1" wide and 1/32" thick - this vice was made in Australia pre-metrication. In metric measurements it's a little over 305mm long, 25mm wide and is ~3mm thick.

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

Screw in next:

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

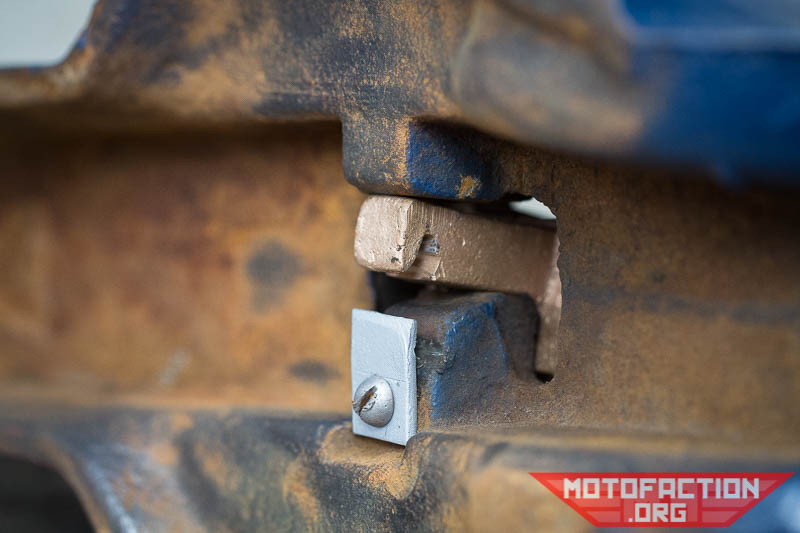

Just about ready for a test fit into the other jaw:

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

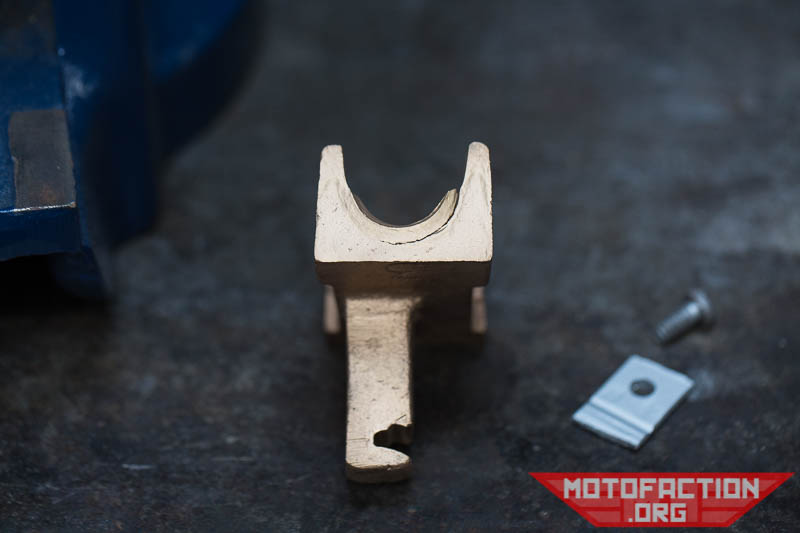

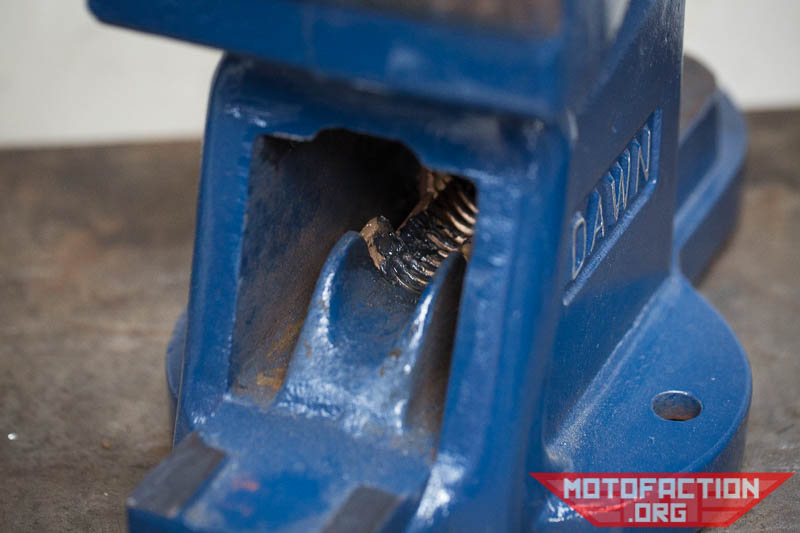

The nut needs to go into the other side first, though:

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

Here's a restoration review of a Dawn 6LQ vice - product number 9027 - which is a 6-inch or 150mm quick action vintage Australian made bench vice.

.

.

More on the last page...

.

.
