A closer look at the H-box or exhaust power chamber - Honda CX500, GL500, CX650, GL650

Before using this site please read the site disclaimer. Also please note that any links provided may be part of an affiliate programme (viz. eBay, Amazon) which helps support the site as I will earn a commission when visitors make a qualifying purchase.

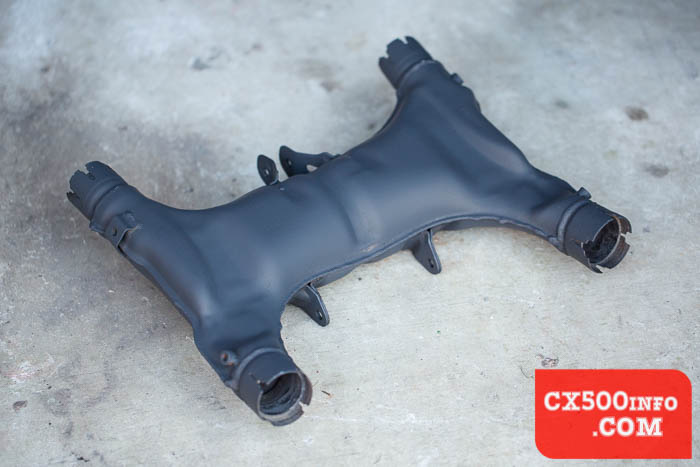

This particular H-box is off a Honda CX650ED:

Rotated 180 degrees:

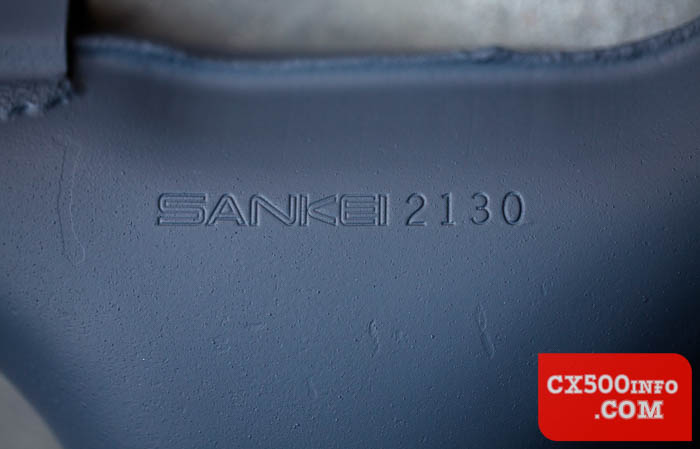

There's a couple of items of note stamped into it - first, SANKEI 2130:

...and elsewhere, HMMGO-A:

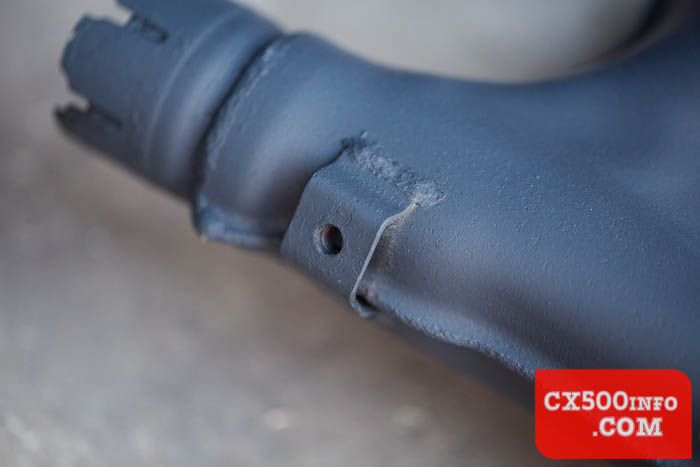

Some more brackets:

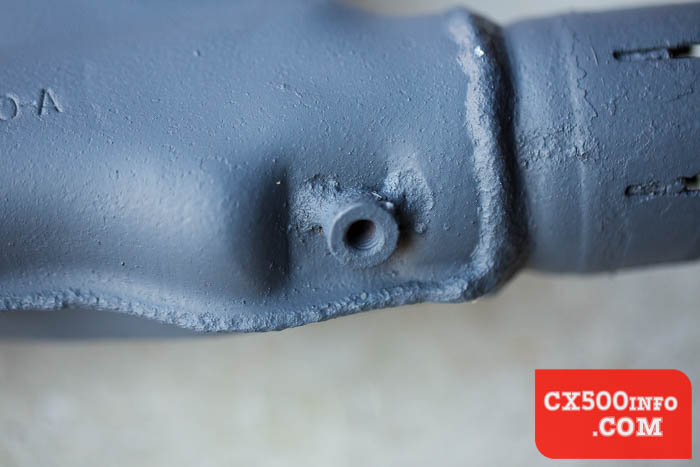

A couple of other bolt holes:

We'll have an article showing the internals in the future - stay tuned.

Tip to tip (front to back) the CX650ED H-box measures a hair under 320mm.
