Alfa Machine Corporation ASR Drill Press Restoration and Information - Page Three


Before using this site please read the site disclaimer. Also please note that any links provided may be part of an affiliate programme (viz. eBay, Amazon) which helps support the site as I will earn a commission when visitors make a qualifying purchase.


Continuing on from the previous page. Head removed:

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

Removing the spindle pulley:

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

View inside from the column's hole of the column clamping mechanism - two aluminium cylinders which are pulled together and clamp onto the column:

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

Table support removed, detail of underside:

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

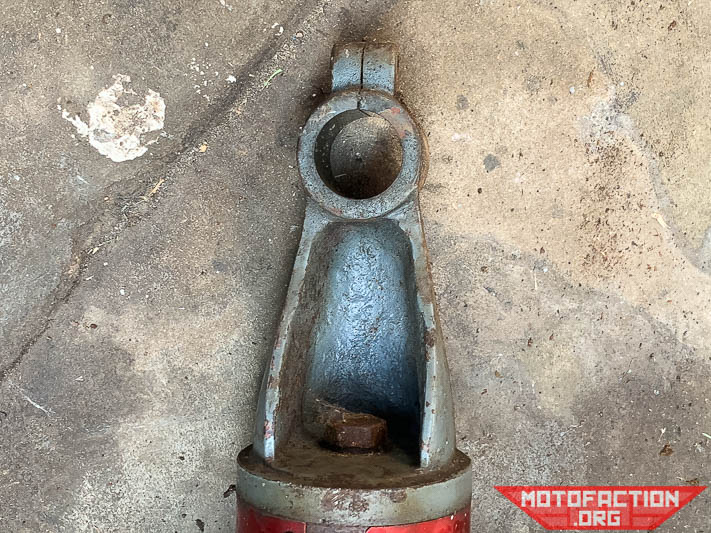

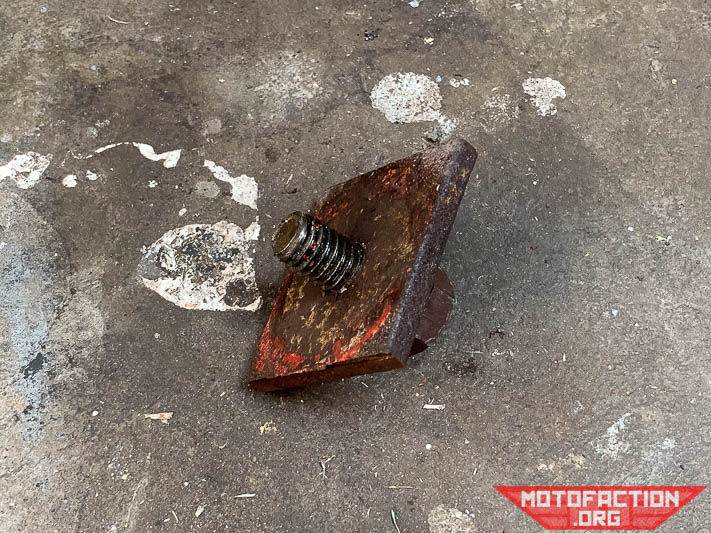

The column is held in by a bolt at the bottom that has a bit of flat plate as a spacer/washer:

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

The base of the solid column:

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

Once the aluminium logo has been removed from the table support a part number is visible:

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

Bolt out, two halves separated:

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

There's a little drawer in the base of the stand, but the handle's thread is woefully off-center:

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.

Here is a partial restoration and review of an Alfa Machine Corporation ASR bench pedestal drill press.
